Radar sensors

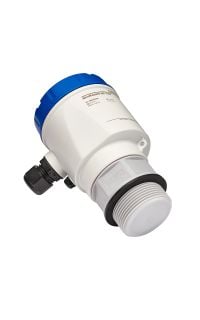

NivoRadar ® - NR 7100
Continuous level measurement
Liquids, Solids
The non-contact 80 GHz FMCW radar sensor NivoRadar® NR 7100 with a narrow beam angle of 8° is used in various industrial applications in storage silos, process tanks and IBC containers for continuous level measurement. The free-radiating level transmitter has a compact design with a 1 1/2" process connection (PVDF) and a measuring range of up to 8 m as well as a very fast response time. The food-compliant radar devices are suitable for use in processes in the food industry. The radar level transmitters can be used in aggressive media such as acids, alkalis and solvents as well as in highly viscous liquids and oils.
Reliable and high-precision measurement results independent of medium properties and ambient conditions for trouble-free operation
Inexpensive and at the same time durable, robust and maintenance-free measurement technology
Simple and user-friendly configuration, commissioning and diagnosis of the radar level sensor via the UWT LevelApp
More Information
Measurement principle
Radar (non-contact)
Measuring task
Continuous level measurement
Medium
Mounting position
top
Ambient temperature
-40°C … +60°C (-40°F … +140°F)
Process temperature
-40°C ... +60°C (-40°F … +140°F)
Process pressure
-1 bar … +3 bar (-14.5 psi … +43 psi)
Minimum sensitivity
DK ≥ 1.1
Housing material
Plastics (PBT Valox)
Housing protection rating
IP66/IP67, Type 4X
Threaded connection
G 1 1/2" NPT 1 1/2" R 1 1/2"
Flange connection
Hygienic fittings
Triclamp adapter
Wetted materials
PVDF
Accuracy
± 5 mm (± 0.2")
Power supply
12...35V DC
Signal output
4...20 mA (2-wire)
Approvals
Hygienic / Pharma
---
Ship approval
---
Overfill protection
---
SIL qualification
---
Further approvals
---
User Interface
Mobile Device + UWT LevelApp
Optical indicator
---
ANATEL Radio Approval
Funkzulassung für Brasilien.
CE
European manufacturer approval for use in non-explosive Environments (European community)
FCC
FCC Federal Communications Commission Certification
FM General purpose
North American approval for use in non-explosive Environments (Factory Mutual)
FMc General Purpose
Canada approval for use in non-explosive Environments (Factory Mutual)
IC
Certificate Industry Canada (IC) or Innovation, Science and Economic Development (ISED) Canada
Radio Approvals
Radio approvals European Union, USA (FCC) and Canada (IC)
UK
UK-Declaration of Conformity
