Radar sensors

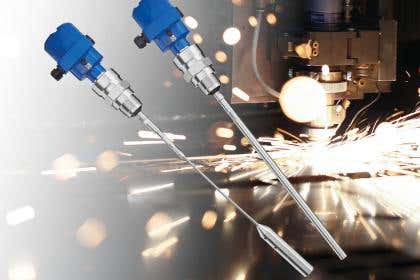

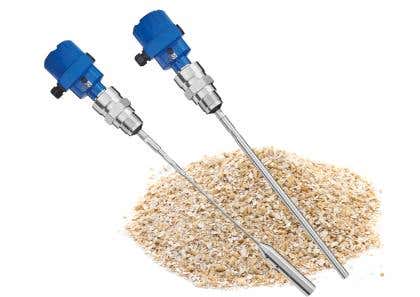

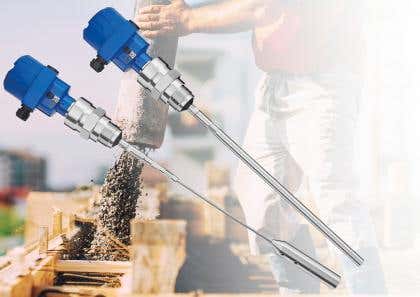

NivoGuide^® - NG 3100

Continuous level measurement
Solids

Application area

The guided radar sensor NivoGuide^® NG 3100 is used for continuous level measurement in bulk solids applications from a Dk value of 1.5. The large measuring range up to a vessel height of 75 m covers many applications in bulk solids. Intuitive operation and a Quick Start Wizard makes commissioning simple and safe.

Your benefit

Simple, menu-driven commissioning and diagnostics with operating module and display
Maintenance-free sensor
Use in narrow vessels possible due to guided radar signal
SIL 2/3 certified

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical Data

More Information
Measurement principle	Guided Radar (TDR)
Measuring task	Continuous level measurement
Medium	Solids
Mounting position	top in a Bypass in a Standpipe on a Socket
Process temperature	-40°C ... +200°C (-40°F … +392°F)
Process pressure	-1 bar … +40 bar (-14.5 psi … +580 psi)
Flange connection	≥ DN50 ≥ 1 1/2"
Hygienic fittings	Triclamp adapter
Wetted materials	Stainless steel 1.4404 (316L) Stainless steel 1.4401 (316) FKM FFKM EPDM PPS PEEK PA
Mechanical load	rod (Ø 16 mm): 30 Nm PA-rope (Ø 6 mm): 8 kN rope (Ø 4 mm): 12 kN rope (Ø 6 mm): 30 kN PA-rope (Ø 11 mm): 30 kN
Power supply	9,6...35V DC
Signal output	4...20 mA/ HART (2-wire) Modbus RTU
Explosion protection	Dust Ignitionproof (Ex t) Intrinsic Safe (Ex i) Explosionproof/ Flameproof (Ex d) Non-incendive
Hygienic / Pharma	---
Further approvals	---
Features	self diagnostics menu-driven quick start echo analysis volume table

Certificates

ATEX Ex-d

European approval for use in explosive Environments (ATmosphère EXplosible)

ATEX Ex-i

European approval for use in explosive Environments (ATmosphère EXplosible)

ATEX Ex-t

European approval for use in explosive Environments (ATmosphère EXplosible)

CE

European manufacturer approval for use in non-explosive Environments (European community)

FM Ex

North American approval for use in explosive and non-explosive Environments (Factory Mutual)

FM General purpose

North American approval for use in non-explosive Environments (Factory Mutual)

IEC-Ex-d

International approval for use in explosive Environments (International Electrotechnical Commission) Type of protection is flameproof enclosures "d"

IEC-Ex-i

International approval for use in explosive Environments (International Electrotechnical Commission) Type of protection is intrinsic safety "i"

INMETRO NCC Ex-d

Brazilian approval for use in explosive Environments (Instituto Nacional de Metrologia, Normalização E Qualidade Industrial)

INMETRO NCC Ex-i

Brazilian approval for use in explosive Environments (Instituto Nacional de Metrologia, Normalização E Qualidade Industrial)

INMETRO NCC Ex-t

Brazilian approval for use in explosive Environments (Instituto Nacional de Metrologia, Normalização E Qualidade Industrial)

SIL 2 / 3

TR-CU / EAC-Ex

Russian declaration of conformity

TR-CU-GP Solids up to 50V

Russian declaration of conformity

UK

UK-Declaration of Conformity

UKEX Ex-d

UK approval for use in potentially explosive atmospheres

UKEX Ex-i

UK approval for use in potentially explosive atmospheres

UKEX Ex-t (Dust)

UK approval for use in potentially explosive atmospheres

Downloads

Instruction Manual

Instruction Manual SIL devices (not coax)

Product Configuration - Technical Notes

Product information sheet

Safety Instructions ATEX Ex-d

Safety Instructions ATEX Ex-i

Safety Instructions ATEX Ex-t

Safety Instructions EX - FM DIP

Safety Instructions EX - FM IS

Safety Instructions EX - FM NI

Safety Instructions EX - FM XP

Safety Instructions IEC Ex-d

Safety Instructions IEC Ex-i

Safety Instructions IEC Ex-t

Safety Instructions INMETRO Ex-d

Safety Instructions INMETRO Ex-i

Safety Instructions INMETRO Ex-t

SIL Safety Manual

Spare Parts and Accessories

Technical Information for standard units with Modbus

Technical Information SIL devices (not coax)

Technical Information standard unit

Whitepaper

Further Downloads are available in our Download Centre
