Vibration level switch
Vibranivo® - VN 1050
Point level measurement
Solids
bulk weight > 50 g/l (> 3 lbs/ft3)

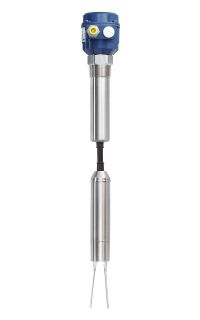

The Vibranivo® VN 1050 vibrating fork is used in storage and process vessels as a full detector in dry and free flowing solids. The level probe can be flexibly configured up to a length of 7000 mm and puts the switching point where the application needs it. The boom of the vibrating fork sensor with cable extension is the safe solution in applications where lateral forces act on the vibrating fork.
Maintenance-free sensor for use in many bulk materials
Probe extension adjustable up to a length of 7000 mm
Plug and play level limit switch without calibration
More Information
Measurement principle
Vibration (Fork)
Measuring task
Point level measurement
Version
Cable extension
Medium
Solids
Mounting position
Ambient temperature
-25°C … +60°C (-13°F … +140°F)
Process temperature
-25°C … 80°C (-13°F … +176°F)
Process pressure
-1 bar … +6 bar (-14.5 psi … +87 psi)
Minimum sensitivity
> 50 g/l (> 3 lbs/ft3)
Housing type
standard
Housing material
Aluminium
Housing protection rating
IP66
Threaded connection
Flange connection
Hygienic fittings
---
Wetted materials
Stainless steel 1.4305 (303) Stainless steel 1.4541 (321) PUR
Accuracy
---
Mechanical load
2 kN
Min. immersion length
750 mm (29.6")
Max. immersion length
20 m (65.74')
Power supply
19...230V AC 12,5...36V DC universal voltage (19...55V DC / 19...230V AC)
Signal output
Relay SPDT Relay DPDT Transistor PNP 8/16 mA 4-20 mA
Approvals
Explosion protection
Dust Ignitionproof (Ex t) Intrinsic Safe (Ex i)
Hygienic / Pharma
---
Ship approval
---
Overfill protection
---
SIL qualification
---
Further approvals
---
User Interface
---
Optical indicator
LED
Features
adjustable sensitivity adjustable output delay switchable logic (Fail Safe High - Fail Safe Low)
ATEX
European approval for use in explosive Environments (ATmosphère EXplosible)
CCC-Ex
Chinese approval for use in explosive Environments
CE
European manufacturer approval for use in non-explosive Environments (European community)
IEC-Ex
International approval for use in explosive Environments (International Electrotechnical Commission)
INMETRO
Brazilian approval for use in explosive Environments (Instituto Nacional de Metrologia, Normalização E Qualidade Industrial)
KCs
Korean certificate of conformity
TR-CU / EAC-Ex
Russian declaration of conformity
TR-CU-GP Solids over 50V
Russian declaration of conformity
TR-CU-GP Solids up to 50V
TR-CU-GP Solids up to 50V
Russian declaration of conformity
UK
UK-Declaration of Conformity
UKEX
UK approval for use in potentially explosive atmospheres
