Vibration level switch
Vibranivo® - VN 4040
Point level measurement
Solids
bulk weight > 30 g/l (> 3.8 lbs/ft3)

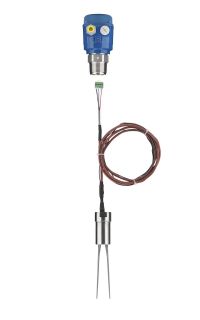

The vibrating fork Vibranivo® VN 4040 is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk solids. The measuring probe will be available as a kit for flexible tube extension with cable length of 1500 mm and 4000 mm. Thus, the customer himself defines the length of the probe by the length of the tube.
Maintenance-free, very cost-effective sensor for use in many bulk solids
Flexibility in probe length due to self-assembly kit
Plug and play level limit switch without calibration
More Information
Measurement principle
Vibration (Fork)
Measuring task
Point level measurement
Version
Pipe extension (screwed)
Medium
Solids
Mounting position
Ambient temperature
-40°C … +60°C (-40°F … +140°F)
Process temperature
-40°C … +150°C (-40°F … +302°F)
Process pressure
-1 bar … +16 bar (-14.5 psi … +232 psi)
Minimum sensitivity
> 30 g/l (> 3.8 lb/ft3)
Housing type
standard
Housing material
Aluminium
Housing protection rating
IP67, NEMA Type 4X
Threaded connection
Flange connection
Hygienic fittings
Triclamp 2"
Wetted materials
Stainless steel 1.4581 Stainless steel 1.4404 (316L) Stainless steel 1.4305 (303)
Accuracy
---
Mechanical load
tube: 100 Nm oscillating rods: 0,5 kN
Min. immersion length
1500 mm (59")
Max. immersion length
4 m (13.15')
Power supply
universal voltage (19...40V DC / 19...230V AC) 18...40V DC
Signal output
Approvals
CE General purpose ATEX IEC-Ex TR-CU FM
Explosion protection
Dust Ignitionproof (Ex t)
Hygienic / Pharma
Ship approval
---
Overfill protection
---
SIL qualification
---
Further approvals
---
User Interface
---
Optical indicator
LED
Features
adjustable sensitivity switchable logic (Fail Safe High - Fail Safe Low)
ATEX
European approval for use in explosive Environments (ATmosphère EXplosible)
CCC-Ex
Chinese approval for use in explosive Environments
CE
European manufacturer approval for use in non-explosive Environments (European community)
CSA Ex
Canadian approval for use in explosive and non-explosive Environments (Canadian Standards Association)
CSA General purpose
Canada approval for use in non-explosive Environments (Canadian Standards Association)
FM Ex & General purpose
North American approval for use in explosive and non-explosive Environments (Factory Mutual)
IEC-CB
CB Test Certificate
IEC-Ex
International approval for use in explosive Environments (International Electrotechnical Commission)
INMETRO
Brazilian approval for use in explosive Environments (Instituto Nacional de Metrologia, Normalização E Qualidade Industrial)
KCs
Korean certificate of conformity
TR-CU / EAC-Ex
Russian declaration of conformity
TR-CU-GP Solids over 50V
Russian declaration of conformity
TR-CU-GP Solids up to 50V
TR-CU-GP Solids up to 50V
Russian declaration of conformity
UK
UK-Declaration of Conformity
UKEX
UK approval for use in potentially explosive atmospheres
