Vibration level switch
Vibranivo® - VN 5030
Point level measurement, Interface level measurement
Solids
bulk weight > 50 g/l (> 3 lbs/ft3)
The Vibranivo® VN 5030 vibrating fork is used in storage and process vessels as a full and demand detector in dry and free flowing solids. The vibration probe can be flexibly configured up to a length of 4000 mm and puts the switching point where the application needs it. The high surface quality of the stainless steel probe makes the point level measurement ideal for use in applications with hygiene requirements. The VN 5030 offers more space for wiring due to the larger housing and additionally a flameproof version for use in GasEx areas.
Maintenance-free sensor for use in many bulk materials
Probe extension adjustable up to 4000 mm length
Flameproof version available for use within potentially explosive atmospheres (gas)
More Information
Measurement principle
Vibration (Fork)
Measuring task
Point level measurement Interface level measurement
Version
Pipe extension Interface detection Remote version
Medium
Solids
Mounting position
Ambient temperature
-40°C … +60°C (-40°F … +140°F)
Process temperature
-40°C … +150°C (-40°F … +302°F)
Process pressure
-1 bar … +16 bar (-14.5 psi … +232 psi)
Minimum sensitivity
> 50 g/l (> 3 lbs/ft3)
Housing type
standard flameproof increased safety
Housing material
Aluminium
Housing protection rating
IP66, NEMA Type 4X
Threaded connection
Flange connection
Hygienic fittings
Triclamp 2"
Wetted materials
Stainless steel 1.4301 (304) Stainless steel 1.4404 (316L) Stainless steel 1.4541 (321)
Accuracy
---
Mechanical load
tube: 300 Nm oscillating rods: 0,6 kN
Min. immersion length
300 mm (11.8")
Max. immersion length
4 m (13.15')
Power supply
19...230V AC 12,5...36V DC universal voltage (19...55V DC / 19...230V AC)
Signal output
Relay SPDT Relay DPDT Transistor PNP 8/16 mA 4-20 mA
Approvals
CE General purpose ATEX IEC-Ex TR-CU INMETRO FM CSA
Explosion protection
Dust Ignitionproof (Ex t) Intrinsic Safe (Ex i) Explosionproof/ Flameproof (Ex d) Increased Safety (Ex de)
Hygienic / Pharma
Ship approval
---
Overfill protection
---
SIL qualification
---
Further approvals
---
User Interface
---
Optical indicator
LED
Features
adjustable sensitivity adjustable output delay switchable logic (Fail Safe High - Fail Safe Low) Sliding sleeve for variable imersion length
ATEX
European approval for use in explosive Environments (ATmosphère EXplosible)
CCC-Ex
Chinese approval for use in explosive Environments
CE
European manufacturer approval for use in non-explosive Environments (European community)
CSA Ex
Canadian approval for use in explosive and non-explosive Environments (Canadian Standards Association)
CSA General purpose
Canada approval for use in non-explosive Environments (Canadian Standards Association)
FM Ex & General purpose
North American approval for use in explosive and non-explosive Environments (Factory Mutual)
IEC-CB
CB Test Certificate
IEC-Ex
International approval for use in explosive Environments (International Electrotechnical Commission)
INMETRO
Brazilian approval for use in explosive Environments (Instituto Nacional de Metrologia, Normalização E Qualidade Industrial)
KCs Ex-d
Corean certificate of conformity for explosion proof components
KCs Ex-t
Corean certificate of conformity for explosion proof components
TR-CU / EAC-Ex
Russian declaration of conformity
TR-CU-GP Solids over 50V
Russian declaration of conformity
TR-CU-GP Solids up to 50V
TR-CU-GP Solids up to 50V
Russian declaration of conformity
UK
UK-Declaration of Conformity
UKEX
UK approval for use in potentially explosive atmospheres
Product Configuration - Technical Notes
Product Configuration - Technical Notes
Product information sheet
Product information sheet
Product information sheet Interface
Product information sheet Interface
Spare Parts and Accessories
Spare Parts and Accessories
Do you have a specific measurement challenge?
You can search our pool of successfully solved level measurement solutions in our application database
WE ARE DELIGHTED TO OFFER PERSONAL ADVICE
Simply contact us and together we will find the right solution for your application. . During a one-on-one conversation, we will ensure to provide you with the most suitable solution and configuration
GRAEME HUGHES sales.uk@uwtgroup.com
T +44 1743 718883 M +44 7824 381475
Having the right Safety LEVEL
Industry: Chemicals
Having the right Safety LEVEL
Read Application Story
Time to POWER UP with smart Level Measurement Solutions
Industry: Power
Time to POWER UP with smart Level Measurement Solutions
Read Application Story
Level Measurement Solutions when iron gets too hot to handle
Industry: Metal
Level Measurement Solutions when iron gets too hot to handle
Read Application Story
Robust measurement - you can BUILD on!
Industry: Building, Cement & Quarry
Robust measurement - you can BUILD on!
Read Application Story
Sugar beet - as versatile as UWT level measurement devices
Industry: Food & Beverage
Sugar beet - as versatile as UWT level measurement devices
Read Application Story

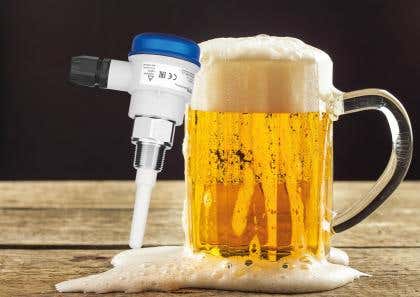

It tastes better when you know your LIMITS
Industry: Food & Beverage
It tastes better when you know your LIMITS
Read Application Story
Robust solutions with particularly long service life
Industry: Synthetics
Robust solutions with particularly long service life
Read Application Story

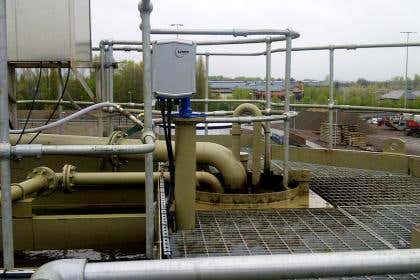

Interface level detection in stone reclaim slurry measurement
