Mounting flange

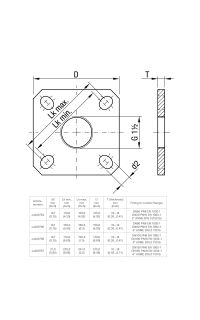

Accessories Mounting flange rectangular NR 7000, thread G1½", fitting to DN80 / 3", plastics PP (zu400765)
Technical Data
More Information
| Spare Part Type |
Mounting flange |
| Size |
DN 80/ 3'' |
| Material |
PP |
| Process connection |
G1½" |
| Process temperature |
-40…80°C (-40…176°F) |
| Pressure |
0,1 bar (1.45 psi) |
| Ex-applications |
no |
| Number of screws |
4 |
| Number of washers |
8 |
| Fitting screws |
M16 x 60 |
| Set of screws |
не включены |
| Item number |
zu400765 |
| Used for Series |
NR 7000 |
