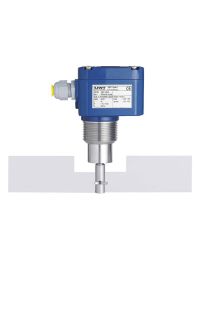

Rotary paddle level switch
Rotonivo® - RN 3005
Point level measurement
Solids
bulk weight > 15 g/l (> 0.9 lbs/ft3)
The rotating paddle detector Rotonivo® RN 3005 is used as a full detector in tank and container loading bellows for all bulk materials. Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator. Due to its compact design, it can be installed in a space-saving manner in the loading sets.
Simple, reliable and maintenance-free limit switch in loading bellows
Works in almost all bulk materials
Plug and play level limit switch without calibration
More Information
Measurement principle
Rotary Paddle
Measuring task
Point level measurement
Version
Extra short version with VT-paddle
Medium
Solids
Mounting position
in loading bellow
Ambient temperature
-40°C … +60°C (-40°F … +140°F)
Process temperature
-40°C ... +80°C (-40°F … +176°F)
Process pressure
-0,9 bar ... +0,8 bar (-13.1 psi … +11.6 psi)
Minimum sensitivity
> 15 g/l (> 0.9 lbs/ft3)
Housing type
standard
Housing material
Housing protection rating
IP66
Threaded connection
Flange connection
---
Hygienic fittings
---
Wetted materials
Aluminium Stainless steel 1.4305 (303) NBR
Accuracy
---
Mechanical load
---
Min. immersion length
90 mm (3.5")
Max. immersion length
90 mm (3.5")
Power supply
24V AC 48V AC 115V AC 230V AC 24V DC universal voltage (24V DC / 22...230V AC)
Signal output
Microswitch Relay SPDT Transistor PNP
Approvals
Explosion protection
Dust Ignitionproof (Ex t)
Hygienic / Pharma
---
Ship approval
---
Overfill protection
---
SIL qualification
---
Further approvals
---
User Interface
Optical indicator
LED
Features
adjustable sensitivity adjustable output delay switchable logic (Fail Safe High - Fail Safe Low) Fail safe alarm (rotation control)
ATEX
European approval for use in explosive Environments (ATmosphère EXplosible)
CCC-Ex
Chinese approval for use in explosive Environments
CE
European manufacturer approval for use in non-explosive Environments (European community)
EHEDG
European approval for use of equipment in hygiene-relevant Environments (European Hygienic Engineering and Design Group)
IEC-Ex
International approval for use in explosive Environments (International Electrotechnical Commission)
INMETRO
Brazilian approval for use in explosive Environments (Instituto Nacional de Metrologia, Normalização E Qualidade Industrial)
KCs
Korean certificate of conformity
TR-CU / EAC-Ex
Russian declaration of conformity
TR-CU-GP Solids over 50V
Russian declaration of conformity
TR-CU-GP Solids up to 50V
TR-CU-GP Solids up to 50V
Russian declaration of conformity
UK
UK-Declaration of Conformity
UKEX
UK approval for use in potentially explosive atmospheres
Product Configuration - Technical Notes
Product Configuration - Technical Notes
Product information sheet
Product information sheet
Spare Parts and Accessories
Spare Parts and Accessories
