Vibration level switch
Mononivo® - MN 4040
Point level measurement
Solids
bulk weight > 20 g/l (> 1.2 lbs/ft3)

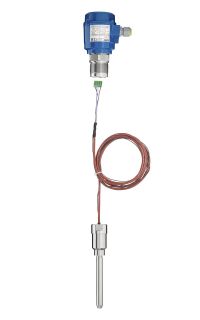

The vibration rod Mononivo® MN 4040 is used in storage and process vessels as a full and demand detector in all bulk solids. The measuring probe will be available as a kit for flexible tube extension with cable length of 1500 mm and 4000 mm. Thus, the customer himself defines the length of the probe by the length of the tube.
Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
Flexibility in probe length due to self-assembly kit
Plug and play level limit switch without calibration
More Information
Measurement principle
Vibration (Rod)
Measuring task
Point level measurement
Version
Pipe extension (screwed)
Medium
Solids
Mounting position
Ambient temperature
-40°C … +60°C (-40°F … +140°F)
Process temperature
-40°C … +150°C (-40°F … +302°F)
Process pressure
-1 bar … +16 bar (-14.5 psi … +232 psi)
Minimum sensitivity
> 20 g/l (> 1.2 lbs/ft3)
Housing type
standard
Housing material
Aluminium
Housing protection rating
IP67, NEMA Type 4X
Threaded connection
Flange connection
Hygienic fittings
≥ Triclamp 2"
Wetted materials
Stainless steel 1.4305 (303) Stainless steel 1.4404 (316L)
Accuracy
---
Mechanical load
tube: 100 Nm oscillator rod: 0,4 kN
Min. immersion length
1500 mm (59")
Max. immersion length
4 m (13.15')
Power supply
universal voltage (22...45V DC / 21...230V AC) 20...40V DC
Signal output
Approvals
CE General purpose ATEX IEC-Ex TR-CU FM FMc
Explosion protection
Dust Ignitionproof (Ex t)
Hygienic / Pharma
---
Ship approval
---
Overfill protection
---
SIL qualification
---
Further approvals
---
User Interface
---
Optical indicator
LED
Features
adjustable sensitivity switchable logic (Fail Safe High - Fail Safe Low)
ATEX
European approval for use in explosive Environments (ATmosphère EXplosible)
CCC-Ex
Chinese approval for use in explosive Environments
CE
European manufacturer approval for use in non-explosive Environments (European community)
FM Ex & General purpose
North American approval for use in explosive and non-explosive Environments (Factory Mutual)
FMc EX
Canada approval for use in explosive and non-explosive Environments (Factory Mutual)
IEC-Ex
International approval for use in explosive Environments (International Electrotechnical Commission)
INMETRO
Brazilian approval for use in explosive Environments (Instituto Nacional de Metrologia, Normalização E Qualidade Industrial)
KCs
Korean certificate of conformity
TR-CU / EAC-Ex
Russian declaration of conformity
TR-CU-GP Solids over 50V
Russian declaration of conformity
TR-CU-GP Solids up to 50V
TR-CU-GP Solids up to 50V
Russian declaration of conformity
UK
UK-Declaration of Conformity
UKEX
UK approval for use in potentially explosive atmospheres
