Mounting Set Mounting bracket
Accessories Mounting bracket NR 4000, vertically rotable, fits for G1", L=80mm (3.2"), 1.4404 (316L) (zu400454)
Material stainless steel 1.4404 (316L) Length 80 mm Process connection G 1" -
Mounting Set Mounting bracket
Accessories Mounting bracket NR 7000, vertically rotable, fits for G1½", L=200mm (7.9"), 1.4404 (316L) (zu400755)
Material stainless steel 1.4404 (316L) Length 200 mm Process connection G1½" -
Mounting Set Mounting bracket
Accessories Mounting bracket NR 7000, vertically rotable, fits for G1½", L=80mm (3.2"), 1.4404 (316L) (zu400754)
Material stainless steel 1.4404 (316L) Length 80 mm Process connection G1½" -
Mounting eye
Accessories Mounting eye NC 8000 for use with rope versions (for PFA coated rope only), 1.4404 (316L) (zu440360)
Material stainless steel 1.4404 (316L) -

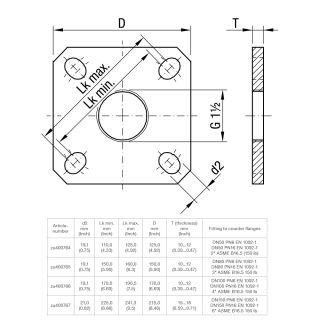

Mounting flange
Accessories Mounting flange rectangular NR 4000, thread G1", fitting to DN100 / 4", plastics PP (zu400466)
Size DN 100/ 4'' Material PP Process connection G 1" -
Mounting flange
Accessories Mounting flange rectangular NR 4000, thread G1", fitting to DN150 / 6", plastics PP (zu400467)
Size DN 150/ 6'' Material PP Process connection G 1" -
Mounting flange
Accessories Mounting flange rectangular NR 4000, thread G1", fitting to DN80 / 3", plastics PP (zu400465)
Size DN 80/ 3'' Material PP Process connection G 1" -
Mounting flange
Accessories Mounting flange rectangular NR 7000, thread G1½", fitting to DN100 / 4", plastics PP (zu400766)
Size DN 100/ 4'' Material PP Process connection G1½" -
Mounting flange
Accessories Mounting flange rectangular NR 7000, thread G1½", fitting to DN150 / 6", plastics PP (zu400767)
Size DN 150/ 6'' Material PP Process connection G1½" -
Mounting flange
Accessories Mounting flange rectangular NR 7000, thread G1½", fitting to DN50 / 2", plastics PP (zu400764)
Size DN 50/ 2'' Material PP Process connection G1½" -
Mounting flange
Accessories Mounting flange rectangular NR 7000, thread G1½", fitting to DN80 / 3", plastics PP (zu400765)
Size DN 80/ 3'' Material PP Process connection G1½" -

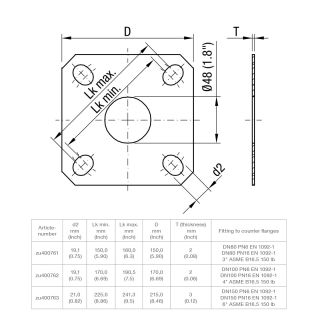

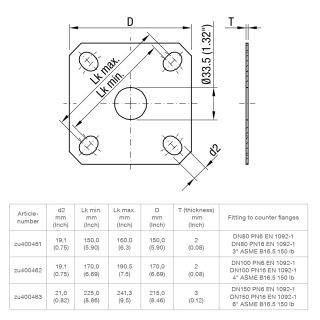

Mounting plate
Accessories Mounting plate rectangular NR 4000, bore for G1", fitting to DN100 / 4", 1.4404 (316L) (zu400462)
Size DN 100/ 4'' Material stainless steel 1.4404 (316L) Process connection G 1" -
Mounting plate
Accessories Mounting plate rectangular NR 4000, bore for G1", fitting to DN150 / 6", 1.4404 (316L) (zu400463)
Size DN 150/ 6'' Material stainless steel 1.4404 (316L) Process connection G 1" -
Mounting plate
Accessories Mounting plate rectangular NR 4000, bore for G1", fitting to DN80 / 3", 1.4404 (316L) (zu400461)
Size DN 80/ 3'' Material stainless steel 1.4404 (316L) Process connection G 1" -
Mounting plate
Accessories Mounting plate rectangular NR 7000, bore for G1½", fitting to DN100 / 4", 1.4404 (316L) (zu400762)
Size DN 100/ 4'' Material stainless steel 1.4404 (316L) Process connection G1½" -
Mounting plate
Accessories Mounting plate rectangular NR 7000, bore for G1½", fitting to DN150 / 6", 1.4404 (316L) (zu400763)
Size DN 150/ 6'' Material stainless steel 1.4404 (316L) Process connection G1½" -
Mounting plate
Accessories Mounting plate rectangular NR 7000, bore for G1½", fitting to DN80 / 3", 1.4404 (316L) (zu400761)
Size DN 80/ 3'' Material stainless steel 1.4404 (316L) Process connection G1½" -
Cable gland
Accessories NB 4000 cable gland with 2 inputs. M25x1,5, clamping range 2x ø4,5-ø7mm, -20 ..+70°C (em400589)
Size M25 x 1,5 Diameter 2x Ø 4,5-7 mm -
Display and Adjustment Module
Accessories NG 3000/ NG 8000 Display and Adjustment Module (plug on) (pl400510)
-
Non return valve
Accessories NR 3000 - Non return valve (zu400520)
Diameter Ø 6 mm (Ø 0.24")
