Sensor kit for cable units
Accessories Sensor-Kit CN 8000 for cable units, fitting to Standard electronic, PPS probe, FKM (pl440100)
Material PPS Probe sealing FKM -
Mounting flange
Accessories NR 3000 / NR 8000 - Standpipe for Radar high process temperature applications (zu400525)
Material stainless steel 1.4404 (316L) -
Rope extension kit
Accessories Rope extension kit NC 8000, "L"=20 m (787"), PFA-coated, 1.4404 (316L) (zu440330)
Material stainless steel 1.4404 (316L) Length 20 m -
Rope extension kit
Accessories Rope extension kit NC 8000, "L"=10 m (394"), PFA-coated, 1.4404 (316L) (zu440320)
Material stainless steel 1.4404 (316L) Length 10 m -
Rope extension kit
Accessories Rope extension kit NC 8000, "L"=5 m (197"), PFA-coated, 1.4404 (316L) (zu440310)
Material stainless steel 1.4404 (316L) Length 5 m -
Process connection
Accessories SensGuard (PPS) R1" (BSPT) with internal thread NPT 3/4", CN7100/CN8000 (cl440103)
Material PPS Probe Process connection R1" -
Process connection
Accessories SensGuard (PPS) NPT 3/4" with internal thread NPT 3/4", CN7100/CN8000 (cl440102)
Material PPS Probe Process connection NPT ¾" -
Rope extension kit
Accessories Rope extension kit NC 8000, "L"=1 m (39.4"), PFA-coated, 1.4404 (316L) (zu440300)
Material stainless steel 1.4404 (316L) Length 1 m -

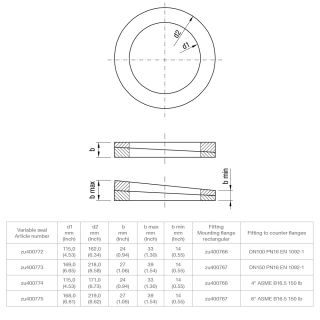

Sensor aiming
Accessories Variable seal NR 3000 / NR 7000 / NR 8000, fitting to DN80 PN10-40, EPDM (zu400771)
Size DN 80 Material EPDM Process temperature -40…80°C (-40…176°F) -
Sensor aiming
Accessories Variable seal NR 3000 / NR 7000 / NR 8000, fitting to DN100 PN16, EPDM (zu400772)
Size DN 100 Material EPDM Process temperature -40…80°C (-40…176°F) -
Voltage [V] 12..30V DC -
Voltage [V] 12..250V AC/DC -
Mounting eye
Accessories Mounting eye NC 8000 for use with rope versions (for PFA coated rope only), 1.4404 (316L) (zu440360)
Material stainless steel 1.4404 (316L) -
Rod extension kit
Accessories Rod extension kit RF 8000, "L"=750 mm (29.5") Rod length=580 mm (22.8"), 1.4404 (316L) (zu440030)
Material stainless steel 1.4404 (316L) Length 750 mm -
Rod extension kit
Accessories Rod extension kit RF 8000, "L"=500 mm (19.7") Rod length=330 mm (13.0"), 1.4404 (316L) (zu440020)
Material stainless steel 1.4404 (316L) Length 500 mm -
Rod extension kit
Accessories Rod extension kit RF 8000, "L"=350 mm (13.8") Rod length=180 mm (7.1"), 1.4404 (316L) (zu440010)
Material stainless steel 1.4404 (316L) Length 350 mm -
Rod extension kit
Accessories Rod extension kit RF 8000, "L"=1.000 mm (39.4") Rod length=830 mm (32.7"), 1.4404 (316L) (zu440040)
Material stainless steel 1.4404 (316L) Length 1000 mm -
Capacitive sensor
RFnivo® - RF 8100
Medium Liquids Process pressure -1 bar … +35 bar (-14.5 psi … +511 psi) Process temperature -40°C ... +200°C (-40°F … +392°F) -
Capacitive sensor
Capanivo® - CN 8100
Medium Liquids Process pressure -1 bar … +25 bar (-14.5 psi … +363 psi) Process temperature -40°C … +125°C (-40°F … +257°F) -
Radar sensor
NivoRadar® - NR 8200 | Threaded antenna
Medium Liquids Process pressure -1 bar … +40 bar (-14.5 psi … +580 psi) Process temperature -55 … 250°C | -67 … 482°F -
Capacitive sensor
NivoCapa® - NC 8100
Medium Liquids Process pressure -1 bar … +35 bar (-14.5 psi … +511 psi) Process temperature -40°C ... +200°C (-40°F … +392°F) -
Capacitive sensor
RFnivo® - RF 8200
Medium Liquids Process pressure -1 bar … +35 bar (-14.5 psi … +511 psi) Process temperature -40°C … +400°C (-40°F … +752°F) -
Radar sensor
NivoRadar® - NR 8400 | Hygienic antenna
Medium Liquids Process pressure -1 bar … +16 bar (-14.5 psi … +232 psi) Process temperature -40°C … +150°C (-40°F … +302°F) -
Radar sensor
NivoRadar® - NR 8100 | Plastic horn antenna
Medium Liquids Process pressure -1 … 2 bar | -14.5 … 29.1 psi Process temperature -40°C ... +80°C (-40°F … +176°F)
