Diameter Ø 81 mm (Ø 3.2") Material PVC Version Sensor weight for rope -
Rope version
Spare part Sensor weight NB 3000 for rope, PVC without pin (max. 80°C (176°F)) (sl102220)
Diameter Ø 81 mm (Ø 3.2") Material PVC Version Sensor weight for rope -
Dimension 50x250 mm VT-vane Material stainless steel 1.4305 (303) -
Dimension 40x80 mm notched Material stainless steel 1.4305 (303) -
Sensor aiming
Accessories Variable seal NR 3000 / NR 7000 / NR 8000, fitting to DN80 PN10-40, EPDM (zu400771)
Size DN 80 Material EPDM Process temperature -40…80°C (-40…176°F) -
Voltage [V] 24 V DC -
Voltage [V] 115 V AC -
Voltage [V] 230 V AC -
Diameter Ø 190 mm (Ø 7.5") Material Float PPAluminium Version Sensor weight for tape -
Diameter Ø 95 mm (Ø 3.7") Material PA fabric 1.4310 (301) Aluminium Version Sensor weight for tape -
Dimension 98x98 mm rectangular Material stainless steel 1.4404 (316L) -
Motor- Board- Unit
Spare part Motor/PCB RN 3000/ RN 4000 universal voltage 5/min with fail safe alarm [X] (gm405038)
Voltage [V] 24 V DC/ 22 .. 230 V AC Universal voltage Motor Speed 5/min Heating of housing No -
Motor- Board- Unit
Spare part Motor/PCB RN 3000/ RN 4000 universal voltage 1/min with fail safe alarm[F] (gm404038)
Voltage [V] 24 V DC/ 22 .. 230 V AC Universal voltage Motor Speed 1/min Heating of housing No -
Tape version
Spare part Sensor weight NB 3000 for tape 40m, folding cover PA (max. 80°C (176°F)) (sb102224)
Dimension 380 x 380 mm (15 x 15") Material PA fabric 1.4310 (301) stainless steel 1.4305 (303) Version Sensor weight for tape -
Tape version
Spare part Sensor weight NB 3000 for tape 40m, PVC with pin (max. 80°C (176°F)) (sb102221)
Diameter Ø 81 mm (Ø 3.2") Material PVC Version Sensor weight for tape -

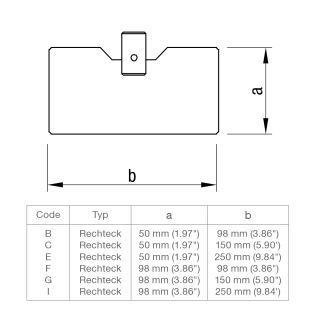

Measuring vane
Spare part Rectangular vane 98 x 250mm [I] 1.4305 (303), RN 3000/ RN 4000/ RN 6000 (fg400650)
Dimension 98 x 250 mm rectangular Material stainless steel 1.4305 (303) -
Measuring vane
Spare part Rectangular vane 98 x 150mm [G] 1.4305 (303), RN 3000/ RN 4000/ RN 6000 (fg400637)
Dimension 98x150 mm rectangular Material stainless steel 1.4305 (303) -
Measuring vane
Spare part Rectangular vane 98 x 98mm [F] 1.4305 (303), RN 3000/ RN 4000/ RN 6000 (fg400635)
Dimension 98x98 mm rectangular Material stainless steel 1.4305 (303) -
Measuring vane
Spare part Rectangular vane 50 x 250mm [E] 1.4305 (303), RN 3000/ RN 4000/ RN 6000 (fg400630)
Dimension 50x250 mm rectangular Material stainless steel 1.4305 (303) -
Measuring vane
Spare part Rectangular vane 50 x 150mm [C] 1.4305 (303), RN 3000/ RN 4000/ RN 6000 (fg400620)
Dimension 50x150 mm rectangular Material stainless steel 1.4305 (303) -
Measuring vane
Spare part Rectangular vane 50 x 98mm [B] 1.4305 (303), RN 3000/ RN 4000/ RN 6000 (fg400610)
Dimension 50x98 mm rectangular Material stainless steel 1.4305 (303) -
Dimension 28x98 mm boot shaped Material stainless steel 1.4404 (316L) -
Measuring vane
Spare part Boot shaped vane 35 x 106mm [D] 1.4404 (316L), RN 3000/ RN 6000 (fg400509)
Dimension 35x106 mm boot shaped Material stainless steel 1.4404 (316L)
