Radar sensor

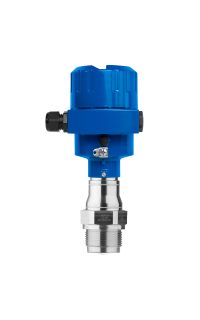

NivoRadar® - NR 3200 | Threaded antenna
Continuous level measurement
Solids
The NivoRadar® 3200 offers continuous level measurement of bulk solids under various process conditions. This compact radar sensor is equipped with an integrated antenna and a robust stainless steel threaded connection, making it ideal for applications with temperatures up to 250 °C. The NivoRadar® 3200 is perfectly suited for smaller process containers, even in hazardous areas, while ensuring reliable measurement results.
Time-saving and easy commissioning via UWT LevelApp, display, or PACTware
Reliable and precise measurement results thanks to 80 GHz radar technology
Maintenance-free sensor for long-lasting and trouble-free level measurement
More Information
Measurement principle
Radar (non-contact)
Measuring task
Continuous level measurement
Versions
Integrated horn antenna
Medium
Solids
Mounting position
top on a socket out of vessel
Ambient temperature
-40°C … +80°C (-40°F … +176°F)
Process temperature
-55 … 250°C | -67 … 482°F
Process pressure
-1 bar … +40 bar (-14.5 psi … +580 psi)
Housing type
standard
Housing material
Aluminum Stainless steel 1.4404 (316L)
Housing protection rating
IP 66/68, Type 6P (Aluminium | Stainless steel)
Threaded connection
Flange connection
---
Hygienic fittings
---
Wetted materials
Stainless steel 1.4404 (316L) EPDM FKM FFKM PEEK
Accuracy
± 1 mm
Mechanical load
---
Min. immersion length
0 mm (0")
Max. immersion length
0 mm (0")
Power supply
12...35V DC 90 … 253V AC | 9,6 … 48V DC
Signal output
4...20 mA/HART (2-wire) Modbus RTU 4…20 mA/HART (4-wire)
Approvals
CE ATEX IEC-Ex INMETRO General purpose cFMus NEPSI KTL
Explosion protection
Dust Ignitionproof (Ex t)
Hygienic / Pharma
Ship approval
---
Overfill protection
WHG
SIL qualification
SIL 2/3
Further approvals
---
Adjustment possibility
PACTware (DTM) Mobile Device + UWT LevelApp Display
Optical indicator
---
ATEX Ex-d, Ex-t
European approval for use in explosive Environments (ATmosphère EXplosible)
ATEX Ex-i
European approval for use in explosive Environments (ATmosphère EXplosible)
CE
European manufacturer approval for use in non-explosive Environments (European community)
FCC
FCC Federal Communications Commission Certification
IC
Certificate Industry Canada (IC) or Innovation, Science and Economic Development (ISED) Canada
IEC-Ex-d, Ex-t
International approval for use in explosive Environments (International Electrotechnical Commission)
IEC-Ex-i
International approval for use in explosive Environments (International Electrotechnical Commission)
Type of protection is intrinsic safety "i"
DTM Software NR 3 / 8 HART
DTM Software NR 3 / 8 HART
DTM Software NR 3 / 8 MODBUS
DTM Software NR 3 / 8 MODBUS
Instruction Manual / Technical Information Digital electronic 4..20mA Hart 2 wire overvoltage protection
Instruction Manual / Technical Information Digital electronic 4..20mA Hart 2 wire overvoltage protection
Instruction Manual / Technical Information Digital electronic 4..20mA Hart 2 wire second current output
Instruction Manual / Technical Information Digital electronic 4..20mA Hart 2 wire second current output
Instruction Manual / Technical Information Digital electronic 4..20mA_Hart_2_wire
Instruction Manual / Technical Information Digital electronic 4..20mA_Hart_2_wire
Instruction Manual / Technical Information Digital electronic 9,6...48V DC 4..20mA Hart 4 wire
Instruction Manual / Technical Information Digital electronic 9,6...48V DC 4..20mA Hart 4 wire
Instruction Manual / Technical Information Digital electronic 90...253V AC 4..20mA Hart 4 wire
Instruction Manual / Technical Information Digital electronic 90...253V AC 4..20mA Hart 4 wire
Instruction Manual / Technical Information Exchange electronics second chamber
Instruction Manual / Technical Information Exchange electronics second chamber
Instruction Manual / Technical Information Modbus levelmaster
Instruction Manual / Technical Information Modbus levelmaster
Product information sheet
Product information sheet
