Process connection M20 x 1,5 to NPT ½" -

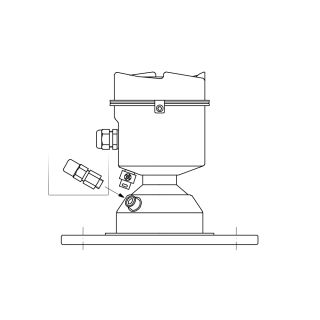

Non return valve
Accessories NR 3000 - Non return valve (zu400520)
Diameter Ø 6 mm (Ø 0.24") -
Material stainless steel 1.4301 (304) -
Mounting flange
Accessories NR 3000 / NR 8000 - Standpipe for Radar high process temperature applications (zu400525)
Material stainless steel 1.4404 (316L) -
Voltage [V] max. 25 V -
Voltage [V] max. 60 V -

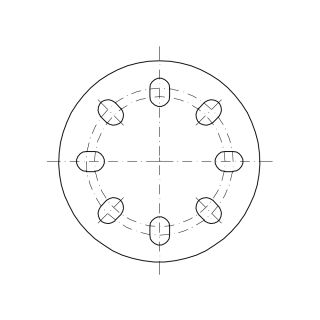

Protector plate for sensor lense
Accessories Protector plate NR 3000 for sensor lense, fitting to flange 100 mm/ 4" (zu400451)
Diameter Ø 229 mm (Ø 9") Material PTFE Process connection 100 mm (4") -
Protector plate for sensor lense
Accessories Protector plate NR 3000 for sensor lense, fitting to flange 150 mm/ 6" (zu400452)
Diameter Ø 285 mm (Ø 11.2") Material PTFE Process connection 150 mm (6") -
Protector plate for sensor lense
Accessories Protector plate NR 3000 for sensor lense, fitting to flange 80 mm/ 3" (zu400450)
Diameter Ø 200 mm (Ø 7.9") Material PTFE Process connection 80 mm (3") -
Rod extension kit
Accessories Rod extension kit RF 8000, "L"=1.000 mm (39.4") Rod length=830 mm (32.7"), 1.4404 (316L) (zu440040)
Material stainless steel 1.4404 (316L) Length 1000 mm -
Rod extension kit
Accessories Rod extension kit RF 8000, "L"=350 mm (13.8") Rod length=180 mm (7.1"), 1.4404 (316L) (zu440010)
Material stainless steel 1.4404 (316L) Length 350 mm -
Rod extension kit
Accessories Rod extension kit RF 8000, "L"=500 mm (19.7") Rod length=330 mm (13.0"), 1.4404 (316L) (zu440020)
Material stainless steel 1.4404 (316L) Length 500 mm -
Rod extension kit
Accessories Rod extension kit RF 8000, "L"=750 mm (29.5") Rod length=580 mm (22.8"), 1.4404 (316L) (zu440030)
Material stainless steel 1.4404 (316L) Length 750 mm -
Rope extension kit
Accessories Rope extension kit NC 8000, "L"=1 m (39.4"), PFA-coated, 1.4404 (316L) (zu440300)
Material stainless steel 1.4404 (316L) Length 1 m -
Rope extension kit
Accessories Rope extension kit NC 8000, "L"=10 m (394"), PFA-coated, 1.4404 (316L) (zu440320)
Material stainless steel 1.4404 (316L) Length 10 m -
Rope extension kit
Accessories Rope extension kit NC 8000, "L"=20 m (787"), PFA-coated, 1.4404 (316L) (zu440330)
Material stainless steel 1.4404 (316L) Length 20 m -
Rope extension kit
Accessories Rope extension kit NC 8000, "L"=5 m (197"), PFA-coated, 1.4404 (316L) (zu440310)
Material stainless steel 1.4404 (316L) Length 5 m -
Rod extension kit
Accessories Rope extension kit RF 8000/ NC 8000, "L"=1 m (39.4"), PFA-coated, shortable, 1.4404 (316L) (zu440200)
Material stainless steel 1.4404 (316L) Length 1 m -
Rope extension kit
Accessories Rope extension kit RF 8000/ NC 8000, "L"=1 m (39.4"), shortable, 1.4404 (316L) (zu440100)
Material stainless steel 1.4404 (316L) Length 1 m -
Rod extension kit
Accessories Rope extension kit RF 8000/ NC 8000, "L"=10 m (394"), PFA-coated, shortable, 1.4404 (316L) (zu440220)
Material stainless steel 1.4404 (316L) Length 10 m -
Rope extension kit
Accessories Rope extension kit RF 8000/ NC 8000, "L"=10 m (394"), shortable, 1.4404 (316L) (zu440120)
Material stainless steel 1.4404 (316L) Length 10 m -
Rod extension kit
Accessories Rope extension kit RF 8000/ NC 8000, "L"=20 m (787"), PFA-coated, shortable, 1.4404 (316L) (zu440230)
Material stainless steel 1.4404 (316L) Length 20 m -
Rope extension kit
Accessories Rope extension kit RF 8000/ NC 8000, "L"=20 m (787"), shortable, 1.4404 (316L) (zu440130)
Material stainless steel 1.4404 (316L) Length 20 m
SPARE PARTS & ACCESSORIES
Explore the spare parts and accessory options for your UWT sensor by utilizing the filters on the left-hand side.
Additionally, you have the option to view our comprehensive list of Spare Parts & Accessories.
Should you have any inquiries, feel free to contact us; we are delighted to assist you!
Check out our How-tocategory in the blog, where you can find informative videos,
such as step-by-step guides on motor replacement and other useful topics
